Mesh

Properties :

• Made of a list of ND points

• Made of a list of ND cells :

  • a 2D cell is made of a LuT of 3 points or more. All points must be coplanars.
  • a 3D cell is made of a LuT of 4 or more points.

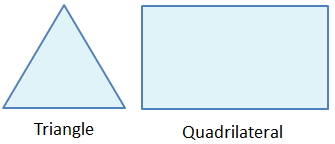

• 2D cell example :

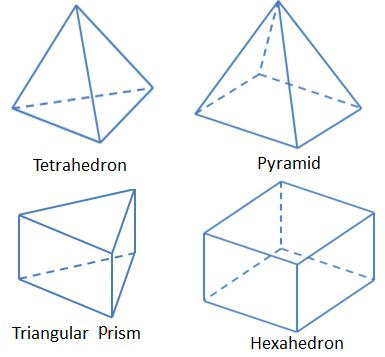

• 3D cell example :



Optionnal :

• Can compute the energy for a cell from the points and their orders.

• Can compute the normal (and triangle orientation, useful to orient resulting vectors in physical computation like collisions) from :

  • a given LuT
  • the given order of the points

• Made of a LuT cell -> value
• Made of a LuT edge -> value
• Made of a LuT vertice -> value

• Made of a dynamic rendering function which can deduce :

  • cell value from edges or/and vertices.
  • edges value from cell or/and vertices.
  • vertice value from cell or/and edges.

Must to have utilities :

• Should be able to give the boudning box quickly.
• An image of mesh shall be able to tell if it is convex or concave.
• Detecting if a point is located within the mesh

Nice to have utilities :

• For concave mesh : implement a quick convex decomposition of the mesh.
• Remesh
• Split by a plane
• Merging two meshes
• Hole detection
• Detecting if a mesh colides another mesh
• Uniformazing the mesh size
